pylab_ml.smu.keithley.keithley2602.Keithley2602

class Keithley2602(addr=None, interface=None, backend=None, identify=True, instName=None)

Bases: Keithley

Interface to the dual channel Power-Measuremet-Unit (SMU) Keithley2602.

Date:

May 05, 2026

Author:

Semi-ATE <info@Semi-ATE.org>

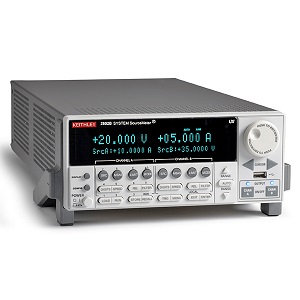

The Keithley2602 can source and sink power in all four voltage/current quadrants and measure voltage and current precisely on dual channels a & b

__init__(addr=None, interface=None, backend=None, identify=True, instName=None)

Connect and initialize.

Parameters:

• addr (int) – interface address

• interface (Interface) – gpib, usbserial

• backend (str) – visa backend is either ‘@ni’ for NI-Library or ‘@py’ for pure python pyvisa-py backend. On default it uses ‘@ni’ on win32 and ‘@py’ on other platforms.

• instName (string) – Instance Name from parent.

Example: Initialization

>>> vdd = Keithley2400(addr=24)  # GPIB or USB address
>>>                              #  validate displayed message Id on device
>>> vdd.init()                   # connect and initialize instrument

Example: Voltage source

>>> vdd.i_clamp = 0.01           # current protection
>>> vdd.voltage = 3.3            # set output voltage
>>> i = vdd.current              # measure (supply) current

Example: Current source

>>> vdd.v_clamp = 5              # voltage protection
>>> vdd.current = 0.1            # set output current_range
>>> v = vdd.voltage              # measure voltage

Methods

__init__([addr, interface, backend, ...])	Connect and initialize.
channel([ch])	Set channel A or B.
clear()	Clear error status.
clearbuffer(ch)	Clear the instrument buffer.
close()	Close the connection and switch off all outputs.
com_recover([fix])	Detect & attempt to recover out of step communication (maybe after timeout).
error_list()	List of instrument errors.
find_names()	find_names() returns list of identifiers strings, lhs of = assignments
get_values([typ])	Transfer last requested measurement sweep results.
help()
identify([showInstName])	Identify message.
init([identify])	Connect to Keithley instrument and initialize.
local()	Switch back to local instrument control.
message([message])	Message display.
mfilter(input)
mqtt_add(client, instrument[, liste, qos])	Add the instrument to mqtt.
mqtt_disconnect()	Remove the instrument from mqtt.
off()	Deactivate output.
on()	Reactivate output.
publish(topic, value)	Publish topic as type='cmd' with paylad=value.
publish_get(function_name, value)	Publish function_name as type='get' with paylad=value.
publish_set(function_name, value)	Publish function_name as type='set' with paylad=value.
reset()	Reset and switch beep off.
scriptin(msg)	A multiline LUA script needs to have -- comments correctly handled and newlines.
scripts()	Upload specific functionality : sweep DUT.
setup_inst()	Start setup instrument settings, called from class instruments.
stair_sweep(start, stop, dstep[, stime, ...])	Sweep V or I, measure v,i,r,p at time t with state s, wait for response.

Attributes

A
B
I_autorange	Autorange drive current on or off.
I_range	Set the current driver range (A).
V_autorange	Autorange drive voltage on or off.
V_range	Set the voltage driver range (V).
ch	Get or Set channel A or B.
command
current	Get or set output current.
i_autorange	Autorange current measurement on or off.
i_clamp	Set the current clamping (A), will adjust current measurement range.
i_range	Set the current measurement range (A).
id	Query IDN.
instName	Return with instname or instname[ch] if it has channels.
interchoices
measure	Get or set measure.
measurecnt	Set/get the number of measurement to be carried out in a loop.
mqtt_enable
mqtt_list
mqtt_status	Getter for the mqtt_status.
nplc	Set the conversion number of power line cycles accuracy, for all converters.
onoff	Set/get on state from output (True).
stair_slope	stair_slope to target or target, slope_time using previous stair_sweep() parameters.
stair_step	Set incremental ramp to target or (target,dstep) or (target,dstep,stime).
v_autorange	Autorange voltage measurement on or off.
v_clamp	Set the voltage clamping (V), will adjust voltage measurement range.
v_range	Set the voltage measurement range (V).
voltage	Get or set output voltage.

property I_autorange

Autorange drive current on or off.

property I_range

Set the current driver range (A).

property V_autorange

Autorange drive voltage on or off.

property V_range

Set the voltage driver range (V).

property ch

Get or Set channel A or B.

channel(ch='A')

Set channel A or B.

clear()

Clear error status.

clearbuffer(ch)

Clear the instrument buffer.

close()

Close the connection and switch off all outputs.

com_recover(fix=False)

Detect & attempt to recover out of step communication (maybe after timeout).

can lose coherency between read request and data, usually because of Timeout this routine can diagnose such loss of coherency and attempt to fix it, when fix=Tru

property current

Get or set output current.

If the current is set the output is switched on immediately.

error_list()

List of instrument errors.

find_names()

find_names() returns list of identifiers strings, lhs of = assignments

get_values(typ='')

Transfer last requested measurement sweep results.

Get response of previous stair_sweep(), choosing result rows from previous request typ

Parameters:

typ (string, optional) – ‘virpts’. The default is ‘’.

Returns:

values.

Return type:

TYPE

property i_autorange

Autorange current measurement on or off.

property i_clamp

Set the current clamping (A), will adjust current measurement range.

property i_range

Set the current measurement range (A).

property id

Query IDN.

identify(showInstName=False)

Identify message.

init(identify=False)

Connect to Keithley instrument and initialize.

property instName

Return with instname or instname[ch] if it has channels.

json = <module 'json' from '/home/runner/miniconda3/envs/test/lib/python3.9/json/__init__.py'>

local()

Switch back to local instrument control.

property measure

Get or set measure.

where the measurements are defined by “virp” flags (VOLTAGE,CURRENT,RESISTANCE,POWER).

property measurecnt

Set/get the number of measurement to be carried out in a loop.

TODO: this function is not running yet, it is only a dummy

if the result == None than this function not implemented. The return value for the measurement is calculated togetheer with the mfilter setting.

message(message=None)

Message display.

instrument message (“string”) or ()

mqtt_add(client, instrument, liste='#', qos=0)

Add the instrument to mqtt.

calling from base_instrument, after the instrument (device) has been create. Normally you have not to use this function, only base_instrument use it.

Returns:

None.

mqtt_disconnect()

Remove the instrument from mqtt.

calling from base_instrument, if the instrument are closing. Normally you have not to use this function, only base_instrument use it.

Returns:

None.

property mqtt_status

Getter for the mqtt_status.

property nplc

Set the conversion number of power line cycles accuracy, for all converters.

for a plc of 0.1, conversion rate is 0.1/50s = 2ms. Accuracy max 25, min 0.001

off()

Deactivate output.

on()

Reactivate output.

property onoff

Set/get on state from output (True).

publish(topic, value)

Publish topic as type=’cmd’ with paylad=value.

publish_get(function_name, value)

Publish function_name as type=’get’ with paylad=value.

publish_set(function_name, value)

Publish function_name as type=’set’ with paylad=value.

reset()

Reset and switch beep off.

scriptin(msg)

A multiline LUA script needs to have – comments correctly handled and newlines.

converted to returns

scripts()

Upload specific functionality : sweep DUT.

setup_inst()

Start setup instrument settings, called from class instruments.

property stair_slope

stair_slope to target or target, slope_time using previous stair_sweep() parameters.

property stair_step

Set incremental ramp to target or (target,dstep) or (target,dstep,stime).

Step_stair to target or target,dstep or target,dstep,stime, using previous stair_sweep() parameters.

stair_sweep(start, stop, dstep, stime=0, typ='V', stair='Lin', wait=False)

Sweep V or I, measure v,i,r,p at time t with state s, wait for response.

Parameters:

• typ –

  ‘Vvirpts-?’, ‘Ivirpts-?’ = Voltage / Current sourced, ‘-’ changes direction,

  volts, amps, ohms, power, timestamp, status are sensed, ? animates display

• start – Start value in volts or amps

• stop – Stop value in volts or amps

• dstep – Delta amplitude for Lin, Points to interpolate for Log, stime is slope time for None (>0.2ms)

• stime – Delay between steps or slope time if dstep == None

• stair – (‘Lin’,’Log) = linear or log source

property v_autorange

Autorange voltage measurement on or off.

property v_clamp

Set the voltage clamping (V), will adjust voltage measurement range.

property v_range

Set the voltage measurement range (V).

property voltage

Get or set output voltage.

If the voltage is set the output is switched on immediately.
