pylab_ml.smu.keithley.keithley2400.Keithley2400

class Keithley2400(addr=None, interface=None, backend=None, identify=True, instName=None)[source]

Bases: Keithley

Interface to the Power-Measuremet-Unit (SMU) Keithley2400.

Date:: May 05, 2026
Author:: Semi-ATE <info@Semi-ATE.org>

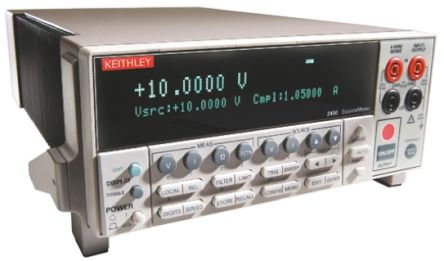

The Keithley2400 can source and sink power in all four voltage/current quadrants and measure voltage and current precisely

__init__(addr=None, interface=None, backend=None, identify=True, instName=None)[source]

Connect and initialize.

Parameters:

addr (int) – interface address
interface (Interface) – gpib, usbserial
backend (str) – visa backend is either ‘@ni’ for NI-Library or ‘@py’ for pure python pyvisa-py backend. On default it uses ‘@ni’ on win32 and ‘@py’ on other platforms.
instName (string) – Instance Name from parent.

Example: Initialization

>>> vdd = Keithley2400(addr=24)  # GPIB or USB address
>>>                              #  validate displayed message Id on device
>>> vdd.init()                   # connect and initialize instrument

Example: Voltage source

>>> vdd.i_clamp = 0.01           # current protection
>>> vdd.voltage = 3.3            # set output voltage
>>> i = vdd.current              # measure (supply) current

Example: Current source

>>> vdd.v_clamp = 5              # voltage protection
>>> vdd.current = 0.1            # set output current_range
>>> v = vdd.voltage              # measure voltage

Methods

`__init__`([addr, interface, backend, ...])	Connect and initialize.
`clear`()	Clear error status.
`close`([force])	Close connection to instrument.
`com_recover`([fix])	Detect & attempt to recover out of step communication (maybe after timeout).
`error_list`()	List of instrument errors.
`find_names`()	find_names() returns list of identifiers strings, lhs of = assignments
`get_values`([typ])	Transfer last requested measurement sweep results.
`help`()
`identify`([showInstName])	Identify message.
`init`([identify])	Connect to Keithley instrument and initialize.
`local`()	Switch back to local instrument control.
`message`([message])	Message display.
`mfilter`(input)
`mqtt_add`(client, instrument[, liste, qos])	Add the instrument to mqtt.
`mqtt_disconnect`()	Remove the instrument from mqtt.
`off`()	Deactivate outputs.
`on`()	Reactivate outputs.
`publish`(topic, value)	Publish topic as type='cmd' with paylad=value.
`publish_get`(function_name, value)	Publish function_name as type='get' with paylad=value.
`publish_set`(function_name, value)	Publish function_name as type='set' with paylad=value.
`reset`()	Reset and switch beep off.
`setup_inst`()	Start setup instrument settings, called from class instruments.
`stair_sweep`(start, stop, dstep[, stime, ...])	Sweep V or I, measure v,i,r at time t with state s, change by dstep, steptime stime, wait for response.

Attributes

`I_autorange`	Autorange drive current on or off.
`I_range`	Set the current drive range (A).
`V_autorange`	Autorange drive voltage on or off.
`V_range`	Set the voltage drive range (V).
`Voltage`	Get driver Voltage.
`channel`	Set/get channel number if the instrument have more than one channel.
`command`
`current`	Get or set output current.
`i_autorange`	Autorange current measurement on or off.
`i_clamp`	Set the current clamping (A), will adjust current measurement range.
`i_range`	Set the current measurement range (A), will adjust current clamping.
`id`	Query IDN.
`instName`	Return with instname or instname[ch] if it has channels.
`interchoices`
`measure`	Get or set measure.
`measurecnt`	Set/get the number of measurement to be carried out in a loop.
`mqtt_enable`
`mqtt_list`
`mqtt_status`	Getter for the mqtt_status.
`nplc`	Set the conversion number of power line cycles accuracy, for all converters.
`onoff`	Set/get on state (True).
`output_function`
`stair_slope`	Set incremental ramp to target or (target,slopetime).
`stair_step`	Set incremental ramp to target or (target,dstep) or (target,dstep,stime).
`v_autorange`	Autorange voltage measurement on or off.
`v_clamp`	Set the voltage clamping (V), will adjust voltage measurement range.
`v_protection`	Set the voltage protection limit\|default\|min\|max, get 4 value tuple.
`v_range`	Set the voltage measurement range, will adjust voltage clamping.
`voltage`	Get or set output voltage.

property I_autorange: Autorange drive current on or off.

property I_range: Set the current drive range (A).

property V_autorange: Autorange drive voltage on or off.

property V_range: Set the voltage drive range (V).

property Voltage

Get driver Voltage.

Returns:: driver Voltage (in V).
Return type:: value(float)

property channel

Set/get channel number if the instrument have more than one channel.

you can also use:

>>> vdd[0].voltage = 5           # set voltage from channel 0
>>> vdd[1].current = 0.1         # set current from channel 1
>>> v = vdd[1].voltage           # measure voltage from channel 1

clear(): Clear error status.

close(force=False): Close connection to instrument.

com_recover(fix=False)

Detect & attempt to recover out of step communication (maybe after timeout).

Can lose coherency between read request and data, usually because of Timeout this routine can diagnose such loss of coherency and attempt to fix it, when fix=True

property current

Get or set output current.

If the current is set the output is switched on immediately.

error_list(): List of instrument errors.

find_names(): find_names() returns list of identifiers strings, lhs of = assignments

get_values(typ='')[source]

Transfer last requested measurement sweep results.

get response of previous stair_sweep(), choosing result rows from previous request typ

property i_autorange: Autorange current measurement on or off.

property i_clamp: Set the current clamping (A), will adjust current measurement range.

property i_range: Set the current measurement range (A), will adjust current clamping.

property id: Query IDN.

identify(showInstName=False): Identify message.

init(identify=False): Connect to Keithley instrument and initialize.

property instName: Return with instname or instname[ch] if it has channels.

json = <module 'json' from '/home/runner/miniconda3/envs/test/lib/python3.9/json/__init__.py'>

local(): Switch back to local instrument control.

property measure

Get or set measure.

where the measurements are defined by “vir” flags (VOLTAGE,CURRENT,RESISTANCE)

property measurecnt

Set/get the number of measurement to be carried out in a loop.

TODO: this function is not running yet, it is only a dummy

if the result == None than this function not implemented. The return value for the measurement is calculated togetheer with the mfilter setting.

message(message=None)

Message display.

instrument message (“string”) or ()

mqtt_add(client, instrument, liste='#', qos=0)

Add the instrument to mqtt.

calling from base_instrument, after the instrument (device) has been create. Normally you have not to use this function, only base_instrument use it.

Returns:: None.

mqtt_disconnect()

Remove the instrument from mqtt.

calling from base_instrument, if the instrument are closing. Normally you have not to use this function, only base_instrument use it.

Returns:: None.

property mqtt_status: Getter for the mqtt_status.

property nplc

Set the conversion number of power line cycles accuracy, for all converters.

for a plc of 1.0, conversion rate is 1/50s = 20ms. Accuracy max 10, min 0.01

off()[source]: Deactivate outputs.

on()[source]: Reactivate outputs.

property onoff: Set/get on state (True).

publish(topic, value): Publish topic as type=’cmd’ with paylad=value.

publish_get(function_name, value): Publish function_name as type=’get’ with paylad=value.

publish_set(function_name, value): Publish function_name as type=’set’ with paylad=value.

reset(): Reset and switch beep off.

setup_inst()[source]: Start setup instrument settings, called from class instruments.

property stair_slope

Set incremental ramp to target or (target,slopetime).

Stair_slope to target or target,slope_time using previous stair_sweep() parameters.

property stair_step

Set incremental ramp to target or (target,dstep) or (target,dstep,stime).

Stair_step to target or target,dstep or target,dstep,stime, using previous stair_sweep() parameters.

stair_sweep(start, stop, dstep, stime=0, typ='V', stair='Lin', wait=False)[source]

Sweep V or I, measure v,i,r at time t with state s, change by dstep, steptime stime, wait for response.

if dstep is None then stime is slopetime (>1ms) & nplc is min : 0.01

typ: ‘Vvirts-’, ‘Ivirts-’ = Voltage / Current sourced, ‘-’ changes direction,
volts, amps, ohms, timestamp, status are sensed

start: Start value in volts or amps, None implies incremental stop: Stop value in volts or amps dstep: Delta amplitude for Lin, Points to interpolate for Log, stime is slope time for None (>1ms) stime: Delay between steps or slope time if dstep == None stair: (‘Lin’,’Log) = linear or log source

property v_autorange: Autorange voltage measurement on or off.

property v_clamp: Set the voltage clamping (V), will adjust voltage measurement range.

property v_protection: Set the voltage protection limit|default|min|max, get 4 value tuple.

property v_range: Set the voltage measurement range, will adjust voltage clamping.

property voltage

Get or set output voltage.

If the voltage is set the output is switched on immediately.
