pylab_ml.dmm.keithley.keithley2000.Keithley2000

class Keithley2000(addr=None, interface=None, backend=None, identify=True, instName=None, **kwargs)

Bases: Keithley

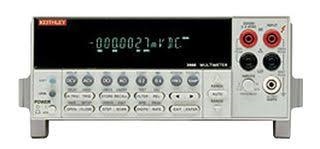

Interface to the Measuremet-Unit (SMU) Keithley2000.

The Keithley2000 can measure voltage and current precisely

Date:

June 16, 2026

Author:

Semi-ATE <info@Semi-ATE.org>

__init__(addr=None, interface=None, backend=None, identify=True, instName=None, **kwargs)

Connect and initialize the Keithley2000.

Parameters:

• (int) (addr) – Interface address

• (Interface) (interface) – GPIB, USBSerial

• (str) (backend) – visa backend is either ‘@ni’ for NI-Library or ‘@py’ for pure python pyvisa-py backend. On default it uses ‘@ni’ on win32 and ‘@py’ on other platforms.

• (string) (instName) – Instance Name from parent.

Example: Initialization

>>> vdd = Keithley2000(addr=24)  # GPIB or USB address
>>> vdd.init()                   # connect and initialize instrument

Example: Current measurement

>>> i = vdd.current              # measure (supply) current

Example: Voltage measurement

>>> v = vdd.voltage              # measure voltage

Methods

__init__([addr, interface, backend, ...])	Connect and initialize the Keithley2000.
clear()	Clear error status.
close([force])	Close connection to instrument.
com_recover([fix])	Detect & attempt to recover out of step communication (maybe after timeout).
error_list()	List of instrument errors.
find_names()	find_names() returns list of identifiers strings, lhs of = assignments
help()	Print the docstring of the instrument class.
identify([showInstName])	Identify message.
init([identify])	Connect to Keithley instrument and initialize.
local()	Switch back to local instrument control.
message([message])	Message display about Keithley instrument.
mfilter(input)
mqtt_add(client, instrument[, liste, qos])	Add the instrument to mqtt.
mqtt_disconnect()	Remove the instrument from mqtt.
publish(topic, value)	Publish topic as type='cmd' with payload=value.
publish_get(function_name, value)	Publish function_name as type='get' with paylad=value.
publish_set(function_name, value)	Publish function_name as type='set' with paylad=value.
reset()	Reset and switch beep off.
setup_inst()	Start setup instrument settings, called from class instruments.
temporal_tuple(threshold, aperture)	Wrapper for tuple assignment to period & frequency.

Attributes

ac_current	Get AC current.
ac_voltage	Get AC voltage.
channel	Set/get channel number if the instrument have more than one channel.
command
current	Get current.
fr_autorange	Autorange 4-wire resistance measurement on or off.
fr_range	Set voltage 4-wire resistance range.
frequency	Get frequency, set (threshold,aperture).
fresistance	Get 4-wire resistance.
i_autorange	Autorange current measurement on or off.
i_range	Set the current measurement range.
iac_autorange	Autorange AC current measurement on or off.
iac_range	Set the AC current measurement range.
id	Query IDN.
instName	Return with instname or instname[ch] if it has channels.
interchoices
measurecnt	Set/get the number of measurement to be carried out in a loop.
mqtt_enable
mqtt_list
mqtt_status	Getter for the mqtt_status.
nplc	Set the conversion number of power line cycles accuracy, for all converters.
period	Get period, set (threshold,aperture).
r_autorange	Autorange resistance measurement on or off.
r_range	Set the resistance measurement range.
resistance	Get resistance.
v_autorange	Autorange voltage measurement on or off.
v_range	Set the voltage measurement range.
vac_autorange	Autorange AC voltage measurement on or off.
vac_range	Set the AC voltage measurement range.
voltage	Get voltage.

property ac_current

Get AC current.

property ac_voltage

Get AC voltage.

property channel

Set/get channel number if the instrument have more than one channel.

One can also use:

>>> vdd[0].voltage = 5           # set voltage from channel 0
>>> vdd[1].current = 0.1         # set current from channel 1
>>> v = vdd[1].voltage           # measure voltage from channel 1

clear()

Clear error status.

close(force=False)

Close connection to instrument.

com_recover(fix=False)

Detect & attempt to recover out of step communication (maybe after timeout).

Can lose coherency between read request and data, usually because of Timeout this routine can diagnose such loss of coherency and attempt to fix it, when fix=True

Parameters:

fix (bool) – If True, attempt to fix out of step communication by consuming extra data from the instrument.

Returns:

True if communication is coherent, False otherwise.

Return type:

bool

property current

Get current.

error_list()

List of instrument errors.

find_names()

find_names() returns list of identifiers strings, lhs of = assignments

Returns:

obj_names – List of identifier strings

Return type:

list of str

property fr_autorange

Autorange 4-wire resistance measurement on or off.

property fr_range

Set voltage 4-wire resistance range.

property frequency

Get frequency, set (threshold,aperture).

property fresistance

Get 4-wire resistance.

help()

Print the docstring of the instrument class.

property i_autorange

Autorange current measurement on or off.

property i_range

Set the current measurement range.

property iac_autorange

Autorange AC current measurement on or off.

property iac_range

Set the AC current measurement range.

property id

Query IDN.

identify(showInstName=False)

Identify message.

init(identify=False)

Connect to Keithley instrument and initialize.

Parameters:

identify (bool) – If True, query the instrument ID and print it to the log.

property instName

Return with instname or instname[ch] if it has channels.

json = <module 'json' from '/home/runner/miniconda3/envs/test/lib/python3.9/json/__init__.py'>

local()

Switch back to local instrument control.

property measurecnt

Set/get the number of measurement to be carried out in a loop.

TODO: this function is not running yet, it is only a dummy

if the result == None than this function not implemented. The return value for the measurement is calculated togetheer with the mfilter setting.

message(message=None)

Message display about Keithley instrument. Instrument message (“string”) or ()

If message is None, the display is cleared, otherwise the message is shown on the display.

Parameters:

message (str or None) – Message to be displayed on the instrument. If None, the display is cleared.

mqtt_add(client, instrument, liste='#', qos=0)

Add the instrument to mqtt. Calling from base_instrument, after the instrument (device) has been create. Normally you have not to use this function, only base_instrument use it.

Parameters:

• client (mqtt_init) – The MQTT client instance to which the instrument should be added.

• instrument (object) – The instrument to be added to the MQTT client.

• liste (list or str) – A list of attributes for which MQTT messages should be sent. If set to “#”, all attributes will be included (default: “#”).

• qos (int) – The Quality of Service level for MQTT messages (default: 0).

Return type:

None

mqtt_disconnect()

Remove the instrument from mqtt. Calling from base_instrument, if the instrument are closing. Normally you have not to use this function, only base_instrument use it.

property mqtt_status

Getter for the mqtt_status.

property nplc

Set the conversion number of power line cycles accuracy, for all converters. For a PLC of 1, conversion rate is 1/50s = 20ms, max 10, min 0.1 accuracy

property period

Get period, set (threshold,aperture).

publish(topic, value)

Publish topic as type=’cmd’ with payload=value.

Parameters:

• topic (str) – The name of the topic to publish.

• value (any) – The value to be published.

Return type:

None

publish_get(function_name, value)

Publish function_name as type=’get’ with paylad=value.

Parameters:

• function_name (str) – The name of the function to be published as a ‘get’ command.

• value (any) – The value to be published as the payload of the ‘get’ command.

Return type:

None

publish_set(function_name, value)

Publish function_name as type=’set’ with paylad=value.

Parameters:

• function_name (str) – The name of the function to be published as a ‘set’ command.

• value (any) – The value to be published as the payload of the ‘set’ command.

Return type:

None

property r_autorange

Autorange resistance measurement on or off.

property r_range

Set the resistance measurement range.

reset()

Reset and switch beep off.

property resistance

Get resistance.

setup_inst()

Start setup instrument settings, called from class instruments.

temporal_tuple(threshold, aperture)

Wrapper for tuple assignment to period & frequency.

Parameters:

• threshold (float) – Threshold voltage for period or frequency measurement.

• aperture (float) – Aperture time for period or frequency measurement.

Returns:

Returns a tuple of (threshold, aperture) for period or frequency measurement.

Return type:

tuple

property v_autorange

Autorange voltage measurement on or off.

property v_range

Set the voltage measurement range.

property vac_autorange

Autorange AC voltage measurement on or off.

property vac_range

Set the AC voltage measurement range.

property voltage

Get voltage.
